Understanding the Piggable Valve: A Smart Solution for Modern Pipeline Efficiency

In today’s industrial landscape, operational efficiency, safety, and sustainability are at the heart of every production process. Whether in the oil and gas sector, the food and beverage industry, or pharmaceuticals, companies are continuously looking for smarter, cleaner, and more cost-effective ways to transport fluids through pipelines. One critical component that makes this possible is the piggable valve.
This article delves into the concept, function, types, advantages, and practical applications of the piggable valve—an essential part of advanced pigging systems used in process industries worldwide.
What is a Piggable Valve?
A piggable valve is a specially designed valve that allows a pipeline pig (a device used to clean, inspect, or push product through a pipeline) to pass through without obstruction. Unlike traditional valves, piggable valves have a full-bore or uninterrupted internal diameter, enabling the safe and efficient travel of pigs throughout the pipeline system.
They are essential in hygienic, high-purity, or high-value processes where product recovery, contamination prevention, and line cleanliness are priorities. Piggable valves are typically installed in systems that regularly require:
- Line clearing between batches
- Pipe cleaning without disassembly
- Flow direction changes in piggable manifolds
- Launch and receive stations for pigs
See also: Advanced Graphics Technology Powers Sweet Bonanza’s Vibrant Visual Effects
How a Piggable Valve Works
In a pigging operation, a pig (usually made of rubber, silicone, or other flexible materials) is inserted into the line to move product, clean residue, or inspect the inner pipeline walls. The pig travels the length of the pipeline, pushed by process fluid or compressed gas. The piggable valve allows the pig to pass through without interruption and, depending on its function, can direct the pig’s path or isolate segments of the line.
A piggable valve must meet two essential conditions:
- Full-bore internal geometry: There must be no protrusions, steps, or constrictions that could trap, damage, or stop the pig.
- Seamless pig guidance: The valve must maintain alignment with the pipeline’s internal diameter, allowing the pig to travel smoothly.
These valves are commonly automated for remote operation, integrating with SCADA or PLC systems in large-scale manufacturing environments.
Key Features of a High-Quality Piggable Valve
- Full-Port Design: Allows unrestricted pig movement without compromising pipeline integrity.
- Robust Construction: Withstands high pressures, temperatures, and chemically aggressive fluids.
- Material Versatility: Available in stainless steel, Hastelloy, and other corrosion-resistant alloys.
- Hygienic Compliance: Smooth, crevice-free surfaces meet 3-A, FDA, or EHEDG standards in food or pharmaceutical lines.
- Automation Ready: Compatible with pneumatic, electric, or hydraulic actuators for streamlined control.
Types of Piggable Valves
There are different piggable valve types depending on the intended application and pipeline configuration:
1. Piggable Ball Valve
The most common form, piggable ball valves feature a spherical disc with a hollow center that aligns perfectly with the pipeline bore when open. These are ideal for simple pigging paths and high-pressure systems.
2. Piggable Plug Valve
A cylindrical or conical plug rotates within the valve body to control flow. Plug valves offer excellent sealing and are ideal for viscous or sticky products like paints and creams.
3. Piggable Diverter Valve
Used in systems with multiple flow paths, diverter valves route pigs or products to different destinations without disconnecting pipelines. Common in multi-product process systems.

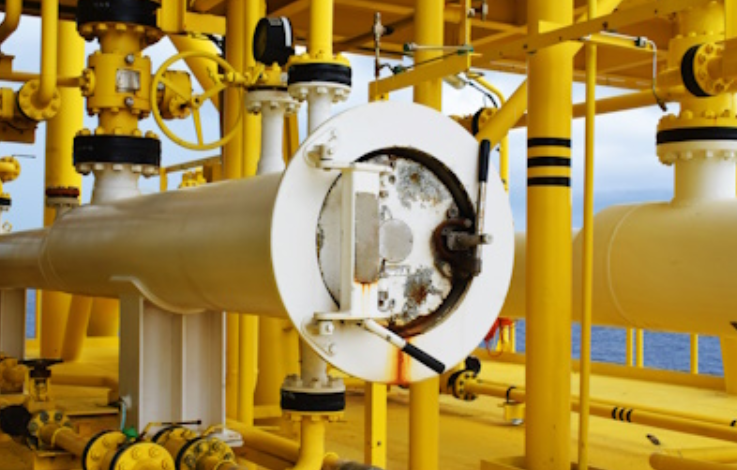

4. Piggable Launch/Receive Valve
These valves are built into pig launching or receiving stations and allow pigs to be inserted or removed safely, often under pressure, with built-in safety interlocks.
Applications of Piggable Valves
🛢️ Oil and Gas
Piggable valves are used in pipeline integrity checks, cleaning, and maintenance pigging. They help reduce downtime by enabling non-intrusive operations.
🧴 Personal Care and Cosmetics
Products like lotions, shampoos, and conditioners leave thick residues in pipes. Piggable valves allow product recovery and reduce changeover cleaning time.
🥫 Food and Beverage
Used in sauce, dairy, or juice manufacturing lines, piggable valves ensure hygienic pigging between batches, minimize waste, and meet strict food safety standards.
💊 Pharmaceuticals
Pharmaceutical facilities rely on piggable valves to prevent cross-contamination and maintain sterile lines, especially during batch changeovers.
🧪 Chemical Manufacturing
Chemicals, resins, or adhesives require tight process control. Piggable valves ensure that high-value or hazardous materials are completely removed from pipes after transfer.
Benefits of Using a Piggable Valve
✅ Enhanced Product Recovery
Piggable valves enable pigs to push residual product out of the line. This can save thousands of liters of material per year, especially in viscous product lines.
✅ Reduced Cleaning Time and Costs
With most residue removed by the pig, piggable systems require less CIP (Clean-In-Place) fluid, labor, and time. This translates to better resource efficiency.
✅ Improved Hygiene and Safety
Piggable valves help maintain high hygiene standards by reducing product buildup. In hazardous chemical applications, they minimize exposure and manual cleaning.
✅ Better Sustainability
Less waste and lower water/chemical usage align with global sustainability goals. Piggable systems also reduce the need for separate transfer lines.
✅ Scalability and Flexibility
Piggable valves support modular system expansion and are suited for facilities managing multiple products through shared pipelines.
Future Trends in Piggable Valves
As automation and digital monitoring evolve, piggable valves are getting smarter:
- Sensor-Enabled Valves: Detect pig position, valve health, and temperature for predictive maintenance.
- Lightweight Alloys: Reduce weight in hygienic lines without compromising strength or corrosion resistance.
- Modular Valve Assemblies: Simplify expansion and maintenance with plug-and-play valve modules.
These innovations are setting the stage for fully autonomous pigging systems where piggable valves respond to real-time demand, product flow, and process schedules.
Conclusion
The piggable valve is a cornerstone of modern pigging systems, offering immense value across industries that demand efficiency, cleanliness, and product integrity. Its role in enabling smooth pigging operations, reducing waste, and improving safety makes it indispensable in sectors ranging from oil to cosmetics.
By selecting the right piggable valve, companies can future-proof their pipeline systems and improve both profitability and sustainability. Whether you’re dealing with liquid chocolate, shampoo, or hydrocarbons, a well-chosen piggable valve ensures your pipeline flows cleaner, faster, and smarter.
